Van Front Strut Kit | AirRide Custom with Boss Bags

£1,995.00

Made to order – lead time varies.

This is a front end air suspension kit for common vans, motorhomes and minibuses. The front end kit is simple to install is fully reversible if required. Can be inflated via Schrader valves (tyre valves available as an optional extra) and nothing extra required to get kit working. OBA kits below are optional extras if required but are listed as 2 way kits (You will require a 4 way kit if ordering BOTH front and rear). Note if you do not select any options this strut comes as a bare strut – no hoses or fittings. This strut uses super tough double convoluted Boss Airbags/Air Springs. Taller larger volume Triple convoluted bags are also available as an option.

Various managements are available BUT note those listed below are for single axle applications – i.e. if you require a kit for both front and rear please search for your vehicle or contact us for a quote.

In stock


Please check the OPTIONS tab below (when present) for further explanation of Management options


Choose Bag Height *

Choose from Standard Double Convoluted Bags or Taller and higher lifting Triple Convoluted Bags

+ £100.00 inc. VAT

Management (single axle) *

Please note that other specifications are available on request. Please contact us for a personal specific quotation.

Bag Size *

Choose which bag meets your needs. The triple bag is designed for those needing higher lift under some circumstances – both drop just as far.

Product price
Additional options total:
Order total:

Description

This is a bespoke made to order AirRide air suspension conversion kit, which is a direct replacement front strut for your van or motorhome. This product is a direct replacement which means anyone competent to change your original suspension is competent to install this. Based on several decades specialising in air suspension systems we know that this is the very best quality air conversion kits on the market. The Transporter T5 version of this product has been in continuous production since 2004 (before many other air suspension specialists had even left school!!!)

It features:-

  • Excellent and practical bolt-on installation which is rated as DIY or Local Garage Fit.
  • Heavy Duty 160 psi rated Boss Air Suspension AirBags
  • Improves stability and reduces roll and improve handling.
  • Full control of your front suspension.
  • Can help re-rating for heavier capacity on some vehicles.
  • Correct upper thrust bearing assembly for correct steering function.
  • Built using the correct dimension dampers and NOT undersize car ones. All our van struts use 25mm or on some heavy models 28mm piston rods. Car shocks use 18mm, 20mm or 22mm – simply not sufficient for 3-4 ton rated vans and motorhomes.
  • Proper automotive grade air springs (airbags) not factory grade or counterfeit as seen on many kits. Bags have at least 6 inches of lift potential.
  • Properly designed brackets mounted at points able to take the load – in the same place as the original strut with no metal cut away.
  • Because we believe in the products we sell, AirRide offers a 2 year extended warranty on this product. (terms apply).

These kits do not have adjustable bodies on them and do not have adjustable dampers. They are built on original spec cores for the best quality ride. The priority on these conversion units is ease of fitment and ride quality. They still drop well but are biased towards ride quality not drop.

These units can be made for most vans which usually have 25mm pistons and 57-58mm pressure tube bodies. Universal Struts available on the rest of the site are for cars and ARE NOT SUITABLE for vans as they will break (as many competitors have found out when modifying car struts for vans). These can be made for most non-car derived mid size vans such as ford Transit, ford Transit Custom, Vivaro, Traffic, Master, Movano, Primastar, Ducato, Boxer, Manager, Relay, Transporter, Vito, V Class,,,,

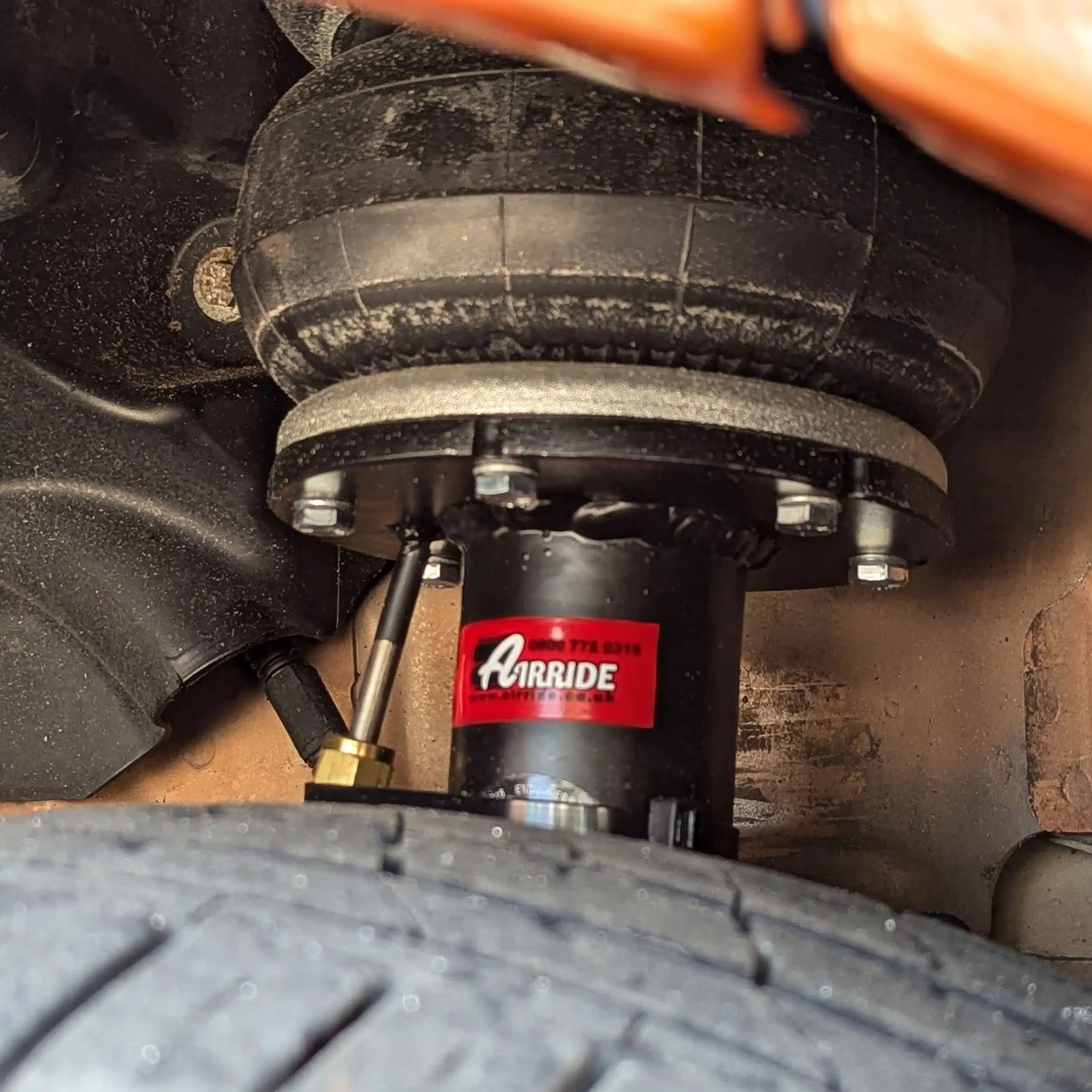

NOTE:- Various pictures shown for illustration. All struts are now equipped with slim line steel top mount plus heavy duty 160psi Boss Air Bags

If you are unsure of the correct fitment or your vehicle is not listed then please email or call and we will be happy to help.

Video

Warranty

AirRide Direct Limited offers a warranty on AirRide products for a period of two years from time of purchase. This warranty is limited to the original purchaser and subject to registration at the time of fitting. If you fail to register then a one-year warranty is offered.

If the kit does not appear to fit – STOP and call us, as a vehicle misidentification may have occurred. Kits will be accepted for return and exchange only if they are undamaged. The buyer must cover the return postage.
